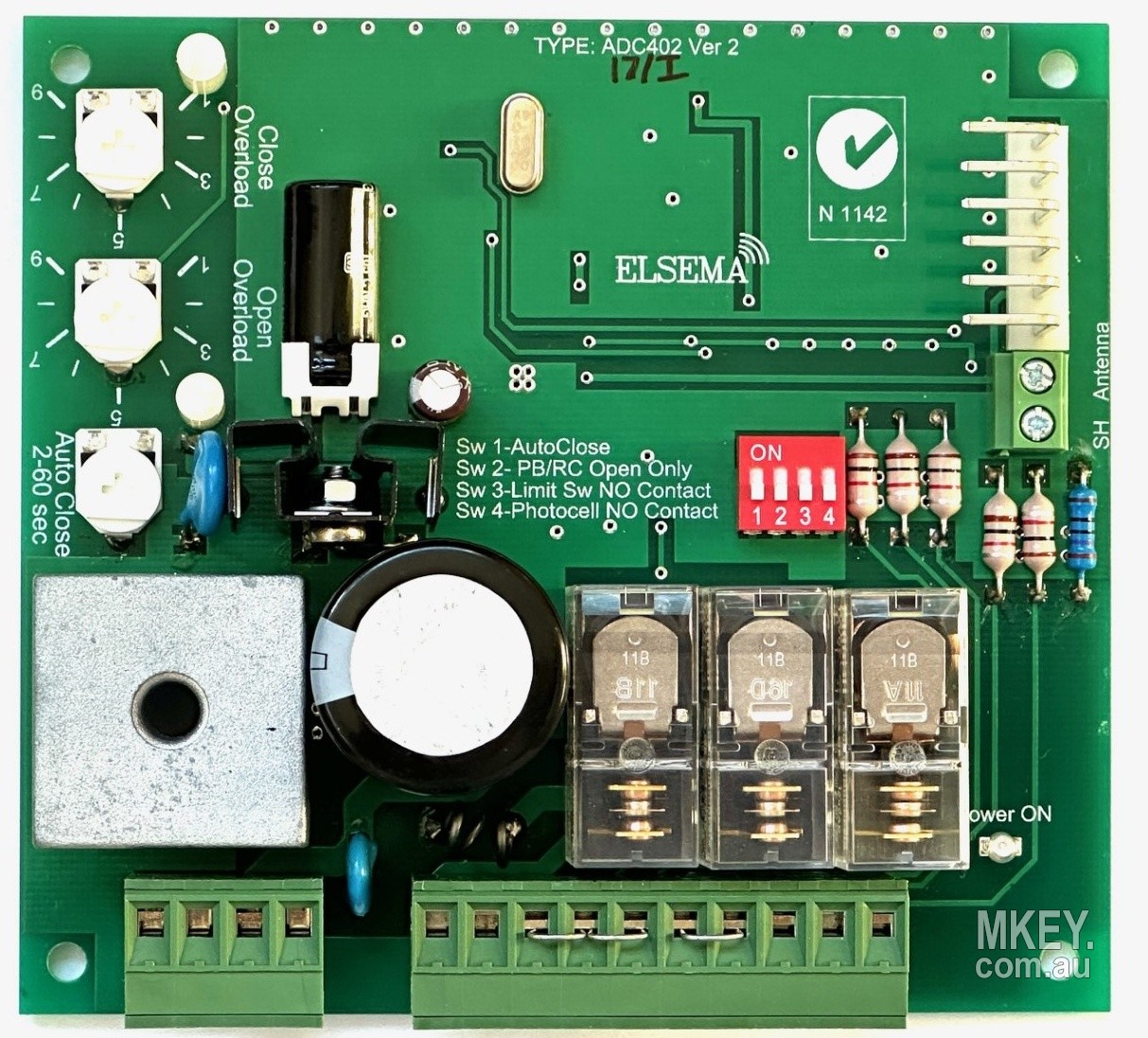

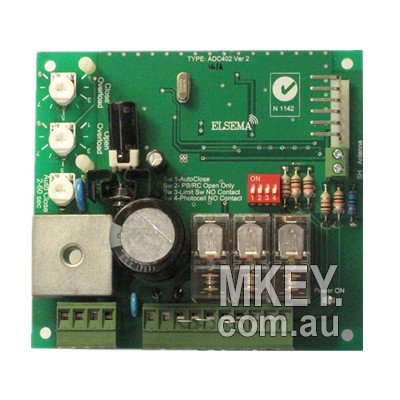

Features. • Suitable for automatic sliding gates and swing gates. • Automatic detection for 24 or 12 Volt supply for controller and motor.

1. Power supply use 24 or 12 Volts. Transformer size should be matched to the motor supply current

2. Install a 2 Amps fuse on the 240V AC side of the transformer.

3. Open relay must open the gate or door. If it does not, reverse the two motor wires at the terminal input or on the motor. See diagram below for open relay position.

4. Turning clockwise on the overload trimpot will increase motor power before tripping.

5. If Auto Close switch is on, gate/door will close after the preset time has expired. Preset 2 - 60 seconds

6. Size of printed circuit board is: 115 X 105 X 40mm.

7. Mounting hole spacing is: 105 X 95mm. Use 1/8” or 3mm screws.

• $149.00
